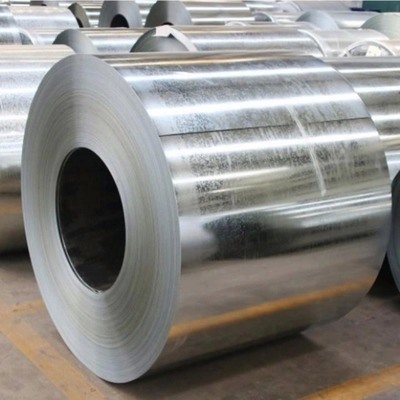

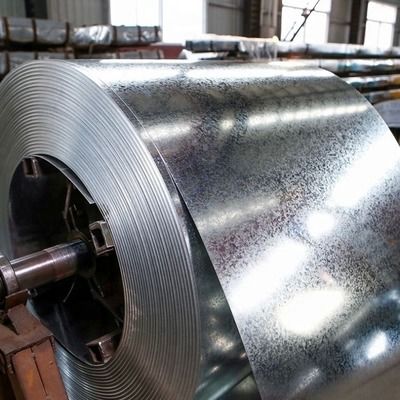

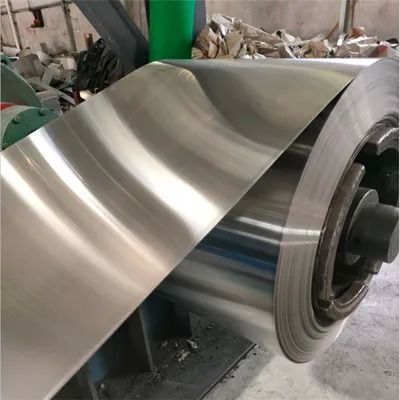

ASTM A792 Certified Galvalume Steel Coil For Architectural
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | HuiYi-GL |
| Πιστοποίηση: | ASTM, EN |
| Αριθμό μοντέλου: | DC51D+AZ |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 25MT |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | VCI Kraft Paper + 0.3mm PE φιλμ + παλέτες με χάλυβα με άκρη |
| Χρόνος παράδοσης: | 15-30 ημέρες |
| Όροι πληρωμής: | T/t, l/c, d/p |
| Δυνατότητα προσφοράς: | 5000mt/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα προϊόντος: | Χαλύβδινο πηνίο Galvalume | Υλικό: | Χάλυβα υψηλής αντοχής |
|---|---|---|---|
| Μέγεθος: | (0.12-3.0) mm × (600-1500) mm | Αντοχή σε εφελκυσμό: | 270-500 MPa |
| Απόδοση: | 140-280 MPa | Αντίσταση ψεκασμού αλατιού: | 1.000hrs (ASTM B117) |
| Θερμική ανακλαστικότητα: | >75% | Ζωή επικάλυψης: | 20-25 χρόνια (κανονικά περιβάλλοντα) |
| Επισημαίνω: | ASTM A792 Galvalume steel coil,architectural Galvalume steel coil,certified Galvalume steel coil |
||
Περιγραφή προϊόντων
ASTM A792 Certified Galvalume Steel Coil For Architectural
Our ASTM A792 Certified Galvalume Steel Coil is engineered for superior performance in architectural applications. Featuring a 55% aluminum-zinc-silicon coating (55% Al, 43.4% Zn, 1.6% Si) this coil provides 2-6 times better corrosion resistance than standard galvanized steel. The hot-dip process creates a metallurgical bond that offers durable protection, with a service life of 20-25 years in normal environments. Ideal for roofing, cladding, and structural components, it also exhibits excellent heat resistance (up to 315°C without discoloration) and high thermal reflectivity (over 75%). Certified to ASTM A792 and supported by ISO 9001 quality management, this coil ensures reliability for demanding architectural projects globally.
Technical Parameters
| Parameter | Specification |
|---|---|
| Base Material | High-Strength Steel Coil |
| Thickness | 0.12mm - 3.0mm(±0.02mm) |
| Width | 600mm - 1,500mm |
| Coating Weight | AZ100-AZ275 |
| Standard/Grade | ASTM A792 |
| Aluminum Content | 55% |
| Surface Finish | Chromated/Oiled, Anti-Fingerprint |
| Spangle Type | Minimal Spangle |
| Coil ID | 508mm/610mm |
| Coil Weight | 3-12 Tons |
Applications
- Building Envelopes: Roofing and wall cladding systems for commercial, industrial, and agricultural buildings.
- Structural Components: Light gauge steel frames, purlins, and trusses.
- Architectural Elements: Facades, rain gutters, downpipes, and decorative panels.
- Interior Applications: Ceiling panels, partition walls, and fire doors.
Customization Options
- Coating Weight: Tailored aluminum-zinc coating within the AZ100-AZ275 range.
- Dimensions: Custom thickness, width, and length cuts.
- Surface Treatment: Oiled, Chromated, or Anti-Fingerprint treatment.
- Spangle Type: Regular spangle, minimized spangle, or zero spangle.
- MOQ: Competitive Minimum Order Quantity with samples available for quality verification.
Packing and Shipping
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
FAQ
Is the ASTM A792 certification reliable?
Yes, ASTM A792 is an internationally recognized standard that specifies requirements for steel sheet coated with aluminum-zinc alloy by the hot-dip process, ensuring product quality and consistency.
What's the payment term for Galvalume Steel Coil?
30-50% TT in advance(based on your qty), 70% balance against copy B/L in 7 workdays.
When will you send BL copy?
In 3-5 workdays after shipment date.
When will you send original Documents?
In 3-5 workdays when we get the balance.
What is the lead time for samples?
Samples are available in 7-10 days after detailed requirements confirmation.
What is your working time?
Our online service time is Beijing time: 8:00-22:00. After 22:00, we will reply to your inquiry in the coming working day.
