AZ150 Galvalume Steel Coil with 55% Alu SGLCC for Solar Applications
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Huiyi-GL |
| Πιστοποίηση: | ISO9001 |
| Αριθμό μοντέλου: | SGLCC, G550 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 25οτάρια |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Εξαγωγή συσκευασίας με 3Layers συμπεριλαμβανομένου του αδιάβροχου πλαστικού φιλμ, αδιάβροχο χαρτί - |
| Χρόνος παράδοσης: | 15-30 ημέρες |
| Όροι πληρωμής: | L/c, d/p, t/t |
| Δυνατότητα προσφοράς: | 5000mt/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα προϊόντος: | Πηνία χάλυβα GL | Επικάλυψη Alu-Zinc: | 55% alu, 43,5% ψευδάργυρος, 1,5% Si |
|---|---|---|---|
| Επικάλυψη ψευδαργύρου: | 30-275 g/㎡ | Πάχος: | 0.12-2.0mm |
| Πλάτος: | 600-1500mm | Τύπος: | Λωρίδα/Φύλλο/Πηνίο |
| Προθεσμία πληρωμής: | T/T, L/C, D/P | Υπηρεσία Επεξεργασίας: | Κάμψη, συγκόλληση, απόσπαση, κοπή, διάτρηση |
| Επισημαίνω: | AZ200 Galvalume Steel Coil,55% Aluminum Galvalume Steel Coil,0.12-1.5mm Thickness Galvalume Steel Coil |
||
Περιγραφή προϊόντων

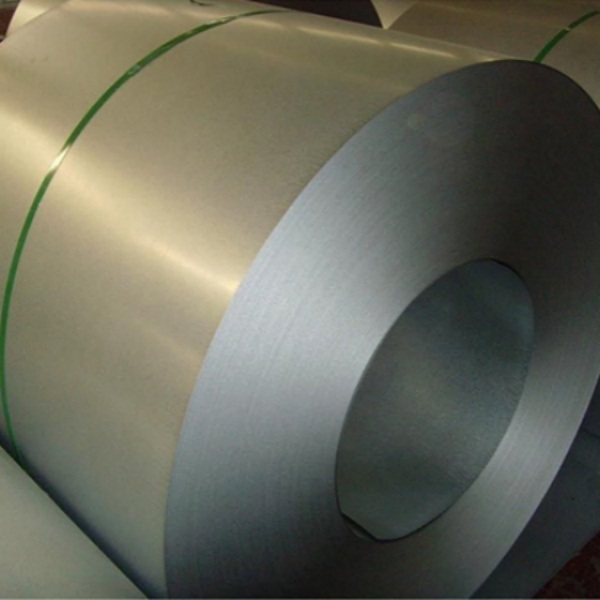

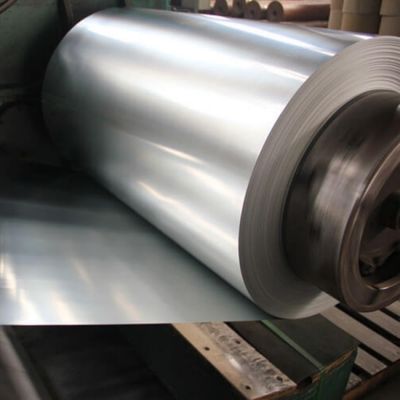

AZ150 Galvalume Steel Coil with 55% Alu SGLCC for Solar Applications
Galvalume steel coils (GL) feature a zinc-aluminum alloy coating applied via hot-dip process, offering dual protection against corrosion through aluminum's barrier effect and zinc's sacrificial properties. With excellent heat resistance and formability, these coils are widely used in roofing, cladding, automotive and construction applications. They provide a durable, cost-efficient solution for projects requiring long-term performance in demanding environments.
Specification
| Type | Steel Coil |
|---|---|
| Thickness | 0.12 - 2mm |
| Width | 600mm-1500mm |
| Zinc Coating | AZ30-AZ275g/m² |
| Standards | ASTM A792, JIS G3322, EN 10346 |
| Raw Material | Hot/Cold Rolled Base |
| Hardness | Soft (normal), Hard, Full hard |
| Grade | DX51D+AZ, DX52D+AZ, S450GD+AZ |
Applications
Galvalume steel coils serve as a versatile material across multiple industries, offering superior durability and corrosion protection through its aluminum-zinc alloy coating.
- Building & Construction: Widely used in structural frameworks, roofing solutions, and wall paneling systems, these coils provide robust support and long-term weather resistance for commercial and residential projects.
- Appliance & HVAC Manufacturing: Ideal for producing refrigerator cabinets, oven housings, and air conditioner components, the material combines formability with resistance to heat and moisture.
- Agricultural Infrastructure: Commonly applied in barns, storage silos, and livestock shelters, the coils withstand harsh farm environments while maintaining structural integrity.
- Solar Energy Systems: Essential for solar mounting structures and panel frames, these coils provide robust strength and lasting weather resistance, ideal for durable rooftop and ground-mounted PV installations.
Packing and Shipping
Our steel coils are secured with three-layer packaging: VCI anti-rust paper, waterproof PE film, and steel-strapped pallets with protective edge guards (maximum 8 tons per coil). We offer worldwide shipping from China via FOB/CIF terms, with delivery timelines of 15-20 days to Asian markets and 30-45 days to other global destinations.
FAQ
Q: Can you ship to my country?
A: Yes, we deliver worldwide. If you don't have a preferred freight forwarder, we can arrange reliable shipping for you.
Q: What information should I provide when inquiring?
A: Please share your requirements—material, size, and any special specs—and we'll prepare a tailored proposal promptly.
Q: What are your payment terms?
A: We support flexible options:
1) 30% T/T deposit, with the balance payable against B/L copy;
2) 100% irrevocable L/C at sight.
Other terms can be discussed based on your needs.
1) 30% T/T deposit, with the balance payable against B/L copy;
2) 100% irrevocable L/C at sight.
Other terms can be discussed based on your needs.
